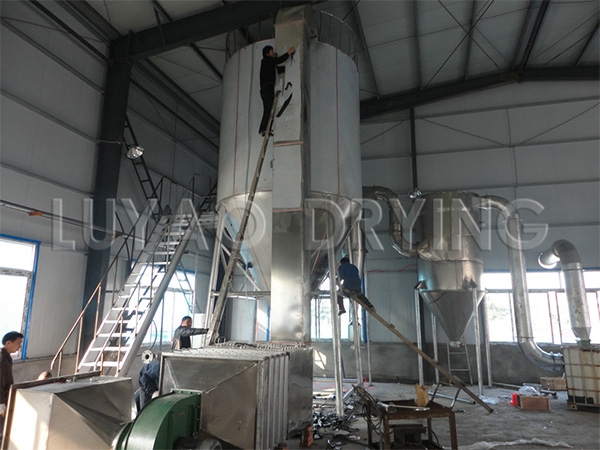

ZLPG Series Herbal Extract Spray Dryer
Detailed Description
Product introduction
The machine is fully enclosed. All parts are made of stainless steel.
It is equipped with a three-stage purification device, and the filtered
air reaches 100,000 grades. The cylinder and the top are equipped with a
cold wall device, so that the wall temperature is < 80°C, and an air
brush tower device is installed in the drying tower. The traditional
Chinese medicine extract powder dried by this machine will not appear
coking and metamorphic phenomena, greatly increasing the rate of powder
collection (over 95%), and it will not produce mixed drug phenomenon and
sticky wall phenomenon.
Principle of work The
traditional Chinese medicine extract high-speed centrifugal sprayer is
the application of centrifugal spray drying technology in the drying of
specific materials, and also uses high-speed centrifugal atomizer to
disperse the material into a mist, fully contact with hot air, complete
instantaneous drying, and form powder. Finished product drying device.
Schematic
Performance characteristics
◎The tower body has cold air jacket;
◎The tower body is equipped with automatic vibration device;
◎The tower body, pipelines are equipped with quick opening cleaning holes and drain holes;
◎Can be equipped with automatic control thermostatic feeding tank;
◎Can be equipped with manual high pressure washing tower Accessories:
◎ The part in contact with the material is made of stainless steel; (or made of stainless steel);
◎ The material is collected using a two-stage cyclone dust removal device, or a level
◎ cyclone dust collector and a wet dust collector;
◎ The inlet air temperature is automatically controlled And continuous devices.
◎ can be equipped with air sweep device.
Technical specifications
| model | ZLPG-15 | ZLPG-20 | ZLPG-25 | ZLPG-32 | ZLPG-38 | ZLPG-40 | ZLPG-47 | ZLPG-52 | ZLPG-58 | |
| Moisture evaporation | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
| Feed volume | 6-7 | 12-14 | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | |
| Finished product output | 1-2 | 2-4 | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 28-42 | 36.8-56.4 | 55-85 | |
| Solid content of wet material | 18-25 | |||||||||
| Finished water content | 3-5 | |||||||||
| Electric power | 36 | 45 | 63 | 99 | 132 | 153 | 204 | 246 | 330 | |
| Heating source | Steam + electricity | |||||||||
|
Product collection methods and one-time collection efficiency |
One or two points collection: Collect BBs 95% at one time | |||||||||
| Automatic control instrument | Temperature and pressure automatic control, adjustment, interlock alarm | |||||||||
| Inlet air temperature | 150-200 | |||||||||
| Outlet temperature | 80-100 | |||||||||
| Overall size (mm) | long | 5000 | 5500 | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 |
| width | 3000 | 3500 | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | |
| high | 4500 | 4600 | 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11100 | |
Note:
★ The actual dimensions can be determined according to the actual
situation of the customer. The above dimensions are for reference only.
★ Above evaporation is the maximum evaporation.
